2007 Victory Motorcycles Vegas Jackpot Arlen Ness Signature Series
Request a Quote Financing Calculator Request a Brochure Financing Form

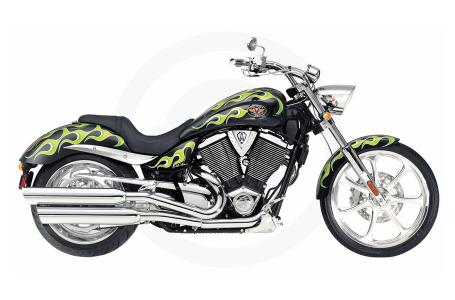

Click here to view full image.
Black with Custom Green Flames
Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.
View All ThumbnailsHide Thumbnails
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Custom Ness mirrors
  • Arlen Ness diamond-band billet grips and billet footpegs
  • Custom billet wheels
  • Gorgeous diamond-cut cylinders and cylinder heads
  • Highly custom paint designed by Arlen Ness w/signed side covers
  • Chrome swingarms
Engine
  • Engine Type: 4-stroke 50° V-Twin
  • Cooling System: Air/Oil
  • Displacement: 100 cu in/1634cc
  • Bore x Stroke: 101x102mm
  • Compression Ratio: 9.8:1
  • Valve Train: Single overhead camshafts with 4 valves per cylinder, hydraulic-adjusting cam chains, hydraulic lifters
  • Fuel System: Electronic Fuel Injection with 44mm throttle bodies
  • Fuel Capacity: 4.5/17.0 U.S. gallons/liters
  • Exhaust: Staggered slash-cut dual exhaust with common volume
  • Oil Capacity: 5.0qts/4.75ltr
  • Charging System: 38 amps max output
  • Battery: 12 volts/18 amp hours
  • Primary Drive: Gear drive with torque compensator
  • Clutch: Wet, multi-plate
  • Transmission: 6-speed Overdrive constant mesh
  • Final Drive: Carbon Fiber Reinforced Belt
Brakes
  • Front Brake: 300mm floating rotor with 4-piston caliper
  • Rear Brake: 300mm floating rotor with 2-piston caliper
Dimensions
  • Length: 96.3/2445 in/mm
  • Wheelbase: 66.3/1684.3 in/mm
  • Seat Height: 25.7/663 in/mm
  • Ground Clearance: 5.3/135 in/mm
  • Rake/Trail: 33.5°/5.12/130 in/mm
  • Dry Weight: 659/299 lbs/kg
  • GVWR: 1155/524 lbs/kg
Suspension
  • Front Suspension: Conventional telescopic fork, 43mm diameter, 5.1in/130mm travel
  • Rear Suspension: Single, mono-tube gas, forged and cast aluminum with rising rate linkage swing-arm, 3.0in/75mm travel, preload adjustable spring
Tires
  • Front Wheel: 21x2.15in
  • Rear Wheel: 18x8.5in
  • Front Tire: 90/90 21 Dunlop Elite 3
  • Rear Tire: 250 40-R18 Dunlop Elite 3
Colors
  • Black with Custom Green Flames

Specifications

Engine
Engine Type 4-stroke 50° V-Twin
Displacement 1634 cc (100 cu. in.)
Bore and Stroke 101x102 mm
Cooling Air/Oil
Compression Ratio 9.8:1
Fuel System Electronic Fuel Injection with 44 mm throttle bodies
Chassis
Front Suspension Conventional telescopic fork, 43 mm diameter, 130 mm (5.1 in.) travel
Front Brakes 300 mm floating rotor with 4-piston caliper
Front Tire 90/90 21 Dunlop Elite 3
Rear Suspension Single, mono-tube gas, forged and cast aluminum with rising rate linkage swing-arm, 75 mm (3.0 in.) travel, preload adjustable spring
Rear Brakes 300 mm floating rotor with 2-piston caliper
Rear Tire 250 40-R18 Dunlop Elite 3
Dimensions
Dry Weight 299 kg (659 lbs.)
Fuel Capacity 17 l (4.5 U.S. gal.)
Wheelbase 1684.3 mm (66.3 in.)
Seat Height 663 mm (25.7 in.)
Trail 130 mm (5.12 in.)
Rake 33.5 degrees
Transmission
Transmission 6-speed Overdrive constant mesh
Final Drive Carbon Fiber Reinforced Belt
General
Colors Black with Custom Green Flames

Compare Models

 Print








Year 2007
Manufacturer Victory Motorcycles
Model Vegas Jackpot Arlen Ness Signature Series
Style Cruiser
MSRP* $22,999.00
Chassis
Front Suspension Conventional telescopic fork, 43 mm diameter, 130 mm (5.1 in.) travel
Front Brakes 300 mm floating rotor with 4-piston caliper
Front Tire 90/90 21 Dunlop Elite 3
Rear Suspension Single, mono-tube gas, forged and cast aluminum with rising rate linkage swing-arm, 75 mm (3.0 in.) travel, preload adjustable spring
Rear Brakes 300 mm floating rotor with 2-piston caliper
Rear Tire 250 40-R18 Dunlop Elite 3
Dimensions
Dry Weight 299 kg (659 lbs.)
Fuel Capacity 17 l (4.5 U.S. gal.)
Wheelbase 1684.3 mm (66.3 in.)
MPG
Seat Height 663 mm (25.7 in.)
Trail 130 mm (5.12 in.)
Rake 33.5 degrees
Engine
Engine Type 4-stroke 50° V-Twin
Displacement 1634 cc (100 cu. in.)
Bore and Stroke 101x102 mm
Cooling Air/Oil
Compression Ratio 9.8:1
Fuel System Electronic Fuel Injection with 44 mm throttle bodies
Ignition
General
Speedometer
Tachometer
Odometer
Colors Black with Custom Green Flames
Warranty
Transmission
Transmission 6-speed Overdrive constant mesh
Final Drive Carbon Fiber Reinforced Belt
